german type hose clamp

As braçadeiras de mangueira do tipo alemão são amplamente utilizadas em automóveis, tratores, empilhadeiras, locomotivas, navios, minas, petróleo, produtos químicos, produtos farmacêuticos, agricultura e outras águas, óleo, vapor, poeira, etc. faixa de ajuste. É adequado para fixadores com conexões de tubos macios e duros. Para mais informações ou detalhes de produtos, não hesite em contactar-nos

: ~~No price~~

Cumulative sales0

Cumulative evaluation0

Quantity: - +

Proceed to Check Out Add to Cart

Collect

商品说明

DIN 3017 OEM GERMANY TYPE CLAMP are widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum, chemicals, pharmaceuticals, agriculture and other water, oil, steam, dust, etc. adjustment range. It is suitable for fasteners with soft and hard tube connections. For more information or product details, please feel free to contact us.

"Adjustable Style. The size of the hose clamp spring clamp can be adjusted according to the pipe diameter. The clamp is flexible and tough, and can be installed and removed at any time.

Various Styles. The inner diameter of the hose clamp spring clamp kit: 8-12mm, 12-22mm, 16-27mm, 20-32mm, 32-50mm. Different types of size parts can meet your different needs.

Wide Range of Uses. These clamps are tightly locked and are widely used to fix hoses, pipes, cables, pipes, fuel pipelines, etc. Very suitable for use in automobiles, industries, ships, shields, households, etc.

Durable and Resistant. The stainless steel hose clamp is made of stainless steel, which has high performance resistance and acid resistance.

Performs under high pressure

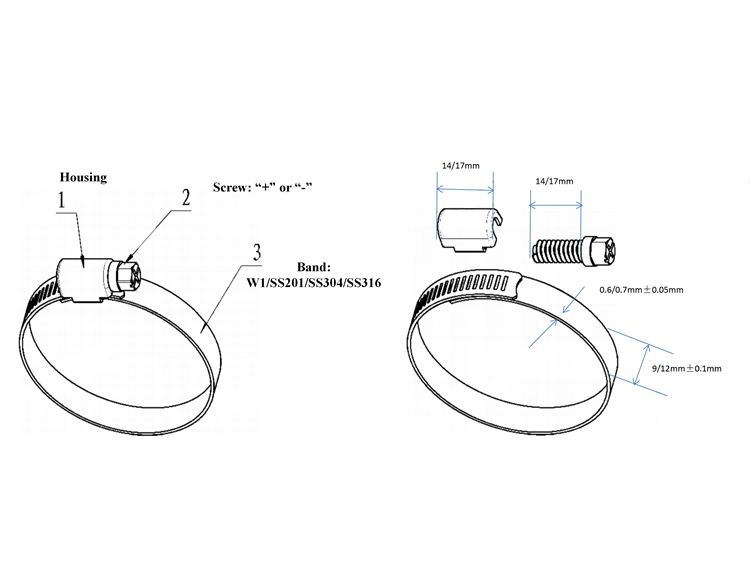

NO.	Parameters	Details
1.	Bandwidth*thickness	1) zinc plated :9/12*0.7mm
		2) stainless steel:9/12*0.6mm
2.	Size	8-12mm to all
3.	Screw Wrench	7mm
3.	Screw Slot	“+” and “-”
4.	Free/Loading Torque	≤1N.m/≥6.5N.m
5.	Connection	welding
6.	OEM/ODM	OEM /ODM is welcome

Portable and Classified. All parts of hose clamp fasteners are classified and packed in a plastic box, which is convenient to carry and use.

"The rolled edges help protect and eliminate scratching the hose surface during installation which helps avoid gas or liquid leaking from the hose

9mm and 12mm widths

Higher torque than American type hose clamps

German-type wolf teeth reduce chafing and damage

Corrosion resistant

Vibration resistant

商品参数

bandwidth:9mm and 12mm

thickness:0.6mm,0.7mm

screw : M7 "一"“十”
