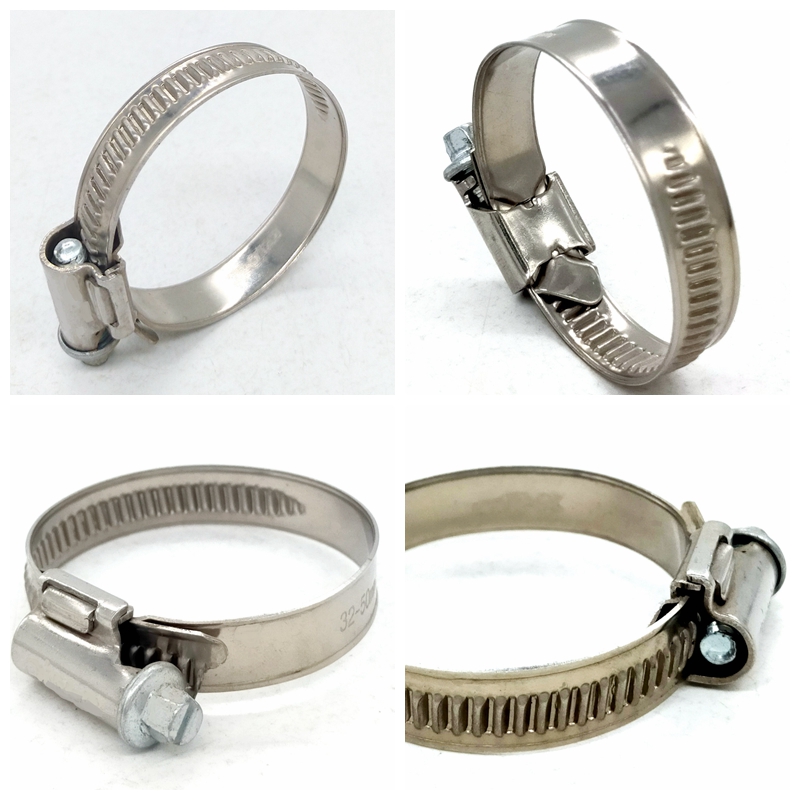

partial head german type hose clamp

Bandwidth：9/12mm

Thickness:0.6/0.7mm

Surface Treatment: :polishing

Material:W1/W2/W4

Manufacture technique:Stamping

Free Torque:≤1Nm

Load Torque:≥6.5Nm

Certification:ISO9001/CE

Packing:plastic Bag/Box/Carton/Pallet

Payment Terms:T/T,L/C,D/P,Paypal and so on

: ~~No price~~

Cumulative sales0

Cumulative evaluation0

Quantity: - +

Proceed to Check Out Add to Cart

Collect

商品说明

"The rolled edges help protect and eliminate scratching the hose surface during installation which helps avoid gas or liquid leaking from the hose

9mm and 12mm widths

Higher torque than American type hose clamps

German-type wolf teeth reduce chafing and damage

Corrosion resistant

Vibration resistant

Performs under high pressure

NO.	Parameters	Details
1.	Bandwidth*thickness	1) zinc plated :9/12*0.7mm
		2) stainless steel:9/12*0.6mm
2.	Size	8-12mm to all
3.	Screw Wrench	7mm
3.	Screw Slot	“+” and “-”
4.	Free/Loading Torque	≤1N.m/≥6.5N.m
5.	Connection	welding
6.	OEM/ODM	OEM /ODM is welcome
